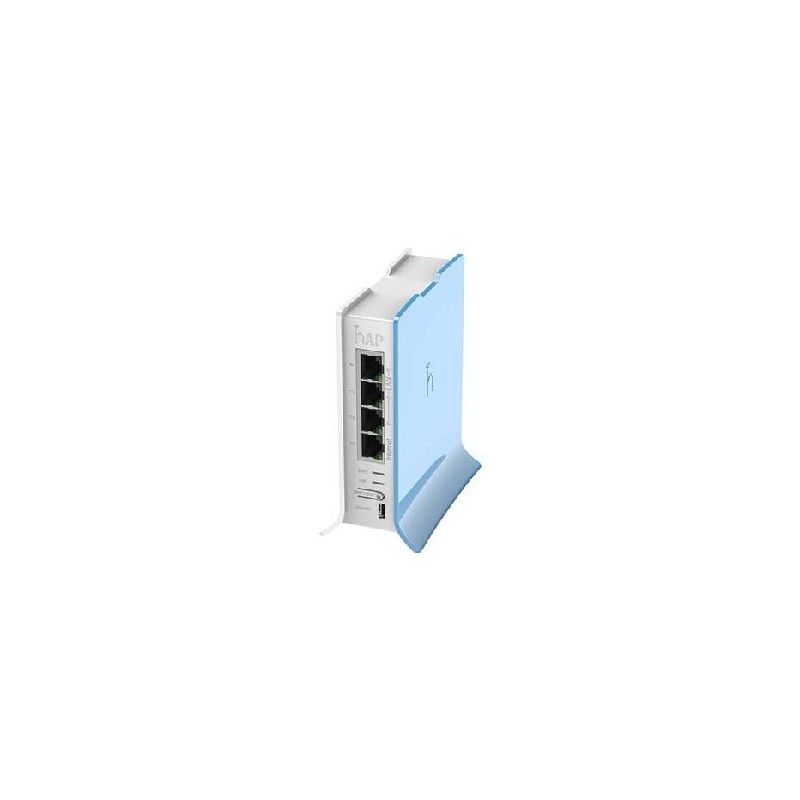

Mikrotik RB941-2nD-TC - RB/ 9412nDTC ("hAP lite")

The home Access Point lite (hAP lite) is an ideal little device for your
apartment;house or office.

It supports button triggered WPS; for the convenience of not typing a
complicated password when somebody wants to have wireless internet access;
and can also be told to change to cAP mode and join a CAPsMAN centrally
managed network by the push of a button.

Of course; the device runs RouterOS with all the features; bandwidth shaping;
firewall; user access control and many others.

The hAP lite is equipped with a powerful 650MHz CPU; 32MB RAM; dual chain
2.4GHz onboard wireless; four Fast Ethernet ports and a RouterOS L4 license.

USB power supply is included.

Order code
RB941-2nD-TC

CPU
QCA9531 650MHz CPU

Memory
32MB DDR RAM

Ethernet
4x 10/100 Mbit/s Ethernet with Auto-MDI/X

Wireless cards
Onboard dual chain 2.4GHz 802.11b/g/n QCA9531 wireless module;
10kV ESD protection on each RF port; WPS support via button

Extras
Reset switch

LEDs
Power LED; 4x Ethernet LED; user LED

Power input
Packaged with 5V DC 0.7A power adapter

Dimensions
124x100x54mm

Max consumption
3W at 5V

Operating Temp
-20C .. +70C tested

OS
MikroTik RouterOS; Level 4 license (AP support)


Product code RB941-2nD-TC
CPU nominal frequency 650 MHz
CPU core count 1
Size of RAM 32 MB
10/100 Ethernet ports 4
10/100/1000 Ethernet ports None
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model QCA9533-BL3A
Wireless standards 802.11b/g/n
Number of USB ports 0
Power Jack 0
PoE in No
Supported input voltage 5 V - 5 V
PoE out No
Voltage Monitor No
PCB temperature monitor No
CPU temperature monitor No
License level 4
Antenna gain DBI 1.5
Current Monitor No
CPU QCA9533-BL3A
Max Power consumption 3W
SFP ports 0
SFP+ ports 0
Number of chains 2
Serial port None ----- File (Source Icecat): Click here
